SKU #: DDP-FAS D05 100G
MPN #: FASD05100G

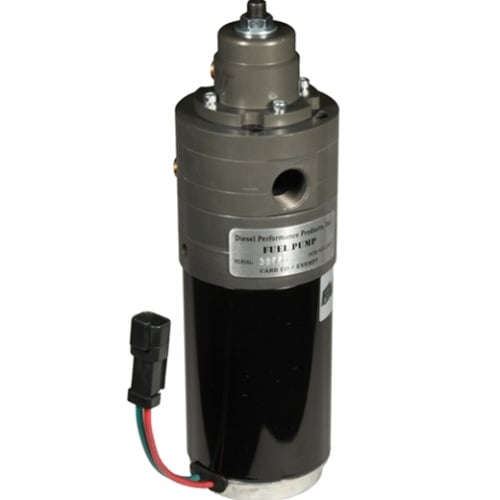

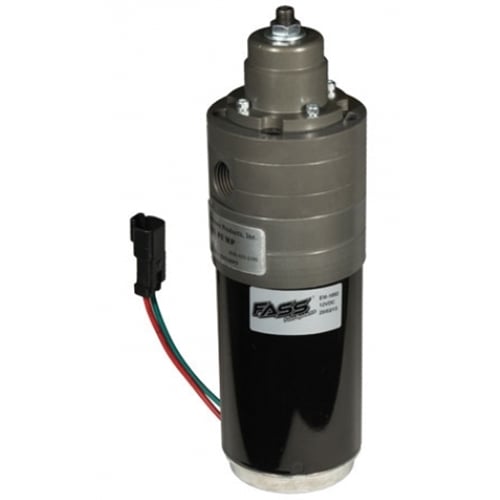

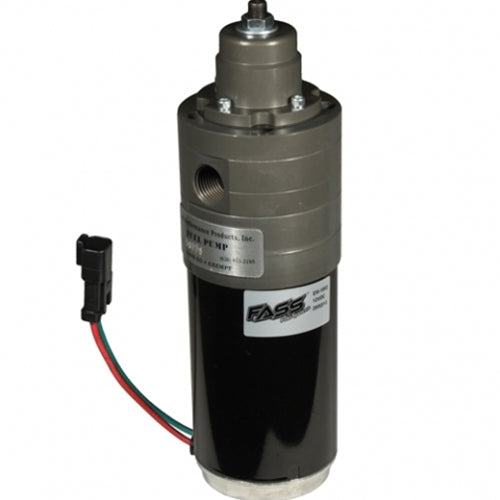

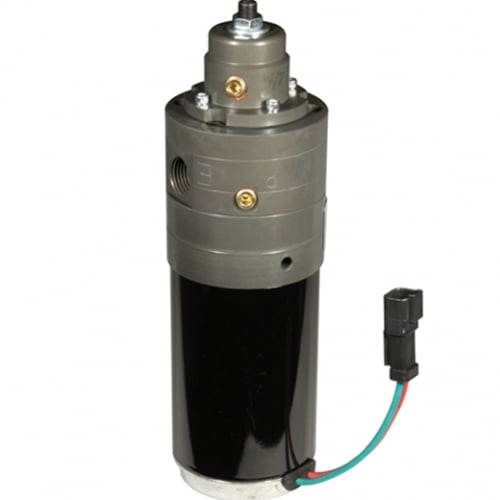

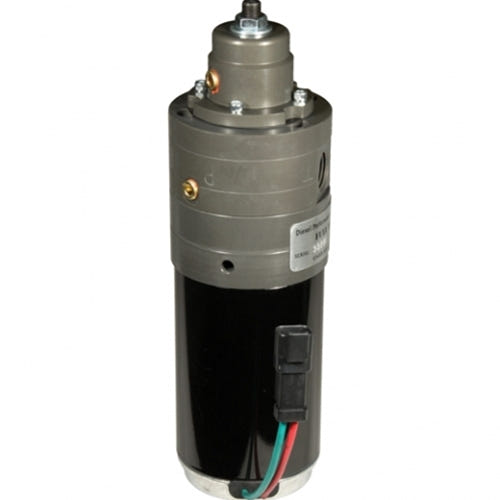

FASS Signature Series Adjustable Fuel Lift Pump 10-14 Dodge Ram 6.7L Cummins
☆☆☆☆☆
(0)
Description
Do you need a reliable pump without the price of a complete FASS Filtration System? Then the FASS HPFP is the pump for you! These pumps are designed for the truck owners who need the benefits of high quality pump, but not the cost of the complete FASS filtration system, or possibly already have a stand alone filtration system.
The line of FASS Adjustable Diesel Fuel Pumps are designed to be the most versatile high performance fuel pump on the market that allows for adjustable fuel pressures to meet the demand of high performance 6.7L Cummins applications. Manufactured with the same motor used in the highly acclaimed FASS Titanium Series pumps, this adjustable fuel pump is available in flow rates from 100 to 290 gallons of diesel fuel per hour and offers adjustable fuel pressure from 1-20 PSI on 100 and 165 GPH models, and 1-75 PSI on 250 and 290 GPH models to customize fuel delivery for race or competition diesel engines. To aid in proper performance, it has a built in boost compensation port, which allows air pressure from your intake manifold to raise fuel pressures while under full throttle, maintaining fuel pressure when it matters most.
This kit includes a FASS STK-1002 (Bulkhead and Suction Tube Kit). Machined from 6061 T-6 Billet Aluminum, the Bulkhead fitting functions as both a suction tube and return and features a 5/8" Suction Tube along with a 1/2" Fuel Return Port. This kit allows you to plum the FASS return line directly to your bulkhead fitting, eliminating all cutting of the filler neck, and significantly speeds up the installation process. The pickup tube is fabricated of PTFE Teflon which can be easily cut to adapt to different depth of fuel tanks. Properly installed, you can safely operate down to about 1/8 tank of fuel.
NOTE: to get FASS warranty coverage for your product you must fill out their registration form here.
FEATURES & BENEFITS:
- Adjustable Fuel Pressure 1-20 PSI on 100 and 165 GPH models, 1-75 PSI on 250 and 290 GPH models
- "Whisper" Technology - Quietest Motor On The Market
- Includes Bulkhead and Suction Tube Kit
- Improves Fuel Flow
- Boost Compensation Port
- Built In Fuel Pressure Gauge Port
- All Mounting Hardware Included
FLOW RATE (GALLONS PER HOUR) EXPLAINED:
- 100 GPH is for stock to 600HP applications.
- 165 GPH is for 600HP to 900HP applications.
- 220 GPH is for 900HP to 1200HP applications.
- 260 GPH is for 1200HP to 1500HP applications.
IMPORTANT NOTES:
- You do not want to run a pump with a higher gallon per hour rating than your engines horsepower or the life of the FASS fuel pump will be greatly reduced. Pump noise is greatly enhanced with the larger flowing pumps.
- All FASS High Performance Fuel Pump systems are complete kits. They come with the hoses, fittings, mounting hardware, etc to do the job. Everything needed to complete the install should be included, except tools and wire ties.
About FASS Fuel Systems
FASS Fuel Systems is an American manufacturing company specializing in the engineering, design, and production of fuel systems and accessories for diesel vehicles. The name œFASS stands for Fuel Air Separation System, which is a perfect acronym for the functionality of a FASS system. FASS builds vehicle specific fuel / lift pumps of varying levels of displacement to meet the needs of the exact build level of your Dodge Ram with a 5.9L or 6.7L Cummins engine, Ford with a Powerstroke engine, Chevrolet or GMC with a Duramax engine, or even your Big Rig Class 8.
GET YOUR FASS FUEL SYSTEM HERE!Diesel Power Products is an authorized FASS Fuel System dealer, meaning you have peace of mind in retaining your complete factory warranty (lifetime warranty on Titanium systems) and the fact if any issues come up, we are well versed in the operation of these systems and can typically help you determine any issues for a quick resolution.
FASS LIFT PUMPS, FUEL FILTERS, AND MOREWhen it comes to fuel systems, FASS has you covered from fuel tank all the way to your injection pump to ensure youre not guessing how to make this part match up to that or what other components youll need and who to get it from. When it comes time to service your FASS Titanium Fuel System with new filters, you can opt for their standard direct replacement offering or the Extended Lenth Particulate Filters and Water Separation Filters. And because sometimes you might find yourself in the middle of nowhere with a bad batch of fuel and no extra FASS filters, FASS systems are designed with cross reference filters in mind, and they even publish that cross reference sheet on their website. When installing a FASS system, or maybe after the fact, maybe you want to eliminate the ugly, unused stock fuel filter¦.no problem, FASS has a complete line up of fuel filter deletes and other accessories to clean up your engine bay. Maybe you live in a colder climate and realizing that once you bypassed your stock fuel filter it also removed your stock fuel heater¦.FASS has you covered yet again. Yes, you can have all of the factory creature comforts but still a high flowing, properly filtered fuel system.
EXPERIENCE A FASS FUEL SYSTEM FOR YOURSELFWhile FASS is most known for their Titanium Signature Series Fuel System that includes an integrated fuel filter and water separator, FASS also builds other popular systems. Do you like the idea of a higher volume frame mounted lift pump, but prefer to keep the stock filtration and fuel heater? The Signature Series Adjustable Fuel Pumps are your answer. Or maybe youve got a Cummins with the original block mounted pump thats finally let go and youre not ready to invest in a complete system. Okay, the DRP (Direct Replacement Pump) is a great option. Maybe you have a Duramax and just looking for a little extra oomph of fuel to your injection pump. Similar to the DRP for Rams, FASS has their Dura-Max Diesel Flow Enhancer.
Overall, you can never go wrong upgrading your truck with a FASS Fuel System. As always, if you have any questions about which system is right for you, dont hesitate to reach out and we will be happy to steer you in the right direction.
