If you’re a diesel enthusiast, you know that a reliable transfer case is the backbone of your truck’s performance. Whether you’re tackling off-road trails, towing heavy loads, or just navigating daily drives, a failing transfer case can bring your plans and truck to a grinding halt.
In this guide, we’ll help you get a handle on everything transfer case-related: what it does, where to find it, the most common symptoms of failure, and what to consider before diving into a transfer case replacement, rebuild, or repair. We’ll also walk through each option step-by-step, helping you decide what’s best for your truck and budget.
And when you’re ready to get going on that replacement, rebuild, or repair, Diesel Power Products stocks the parts that keep you rolling, from complete transfer cases to rebuild kits. Our team knows these trucks inside and out, so you’re never stuck guessing.
Important Considerations Before Starting a Transfer Case Replacement, Repair, or Rebuild
Before diving into the nitty-gritty of replacing, rebuilding, or repairing your transfer case, it’s important to understand what makes each option the right choice. A transfer case isn’t just another part to swap out; it’s the link between your truck’s transmission and its axles, distributing power where it’s needed most.
Before you pick up the wrench, think about these factors:
- Damage Severity: Some issues can be solved with a straightforward repair, while others might need a full rebuild or replacement.
- Mechanical Skill: A rebuild, for example, requires more mechanical skill and patience than a simple replacement.
- Parts Availability: Make sure you have all the right components — from the transfer case itself to rebuild kits and other supporting parts — before you tear anything apart.
- Performance Goals: If you’re looking for more strength, better gearing, or improved off-road capability, an upgraded transfer case replacement might be the way to go. For example, upgrading to a transfer case with deeper low-range gearing (like 3:1 or 4:1) can give you better control and torque multiplication for rock crawling and technical trails, making your truck more capable off-road ( MotorTrend).
We’ll cover each approach in detail in the sections that follow, but keep these factors in mind as you plan your next steps.
What Does the Transfer Case Do?
In preparing to repair, rebuild, or replace your transfer case, it helps to understand exactly what this component does and why it’s so important.
The transfer case sits right behind your transmission and splits engine power between the front and rear axles. In simple terms, it’s the part of the drivetrain that keeps all four wheels turning when you need traction the most. Whether you’re crawling over rocks, plowing through mud, or pulling a loaded trailer, the transfer case helps ensure that power gets to the ground evenly and efficiently. It plays a crucial role in distributing power from the transmission to both axles, improving traction and stability in a wide range of conditions ( Testbook).
Most diesel trucks come with a part-time 4WD transfer case, which means you can shift between 2WD and 4WD as needed. Some setups include additional features like low-range gears for serious off-roading. For trucks with modified suspensions or heavy towing setups, upgraded transfer cases with stronger internals can make a big difference.
Understanding what the transfer case does and how it affects your truck’s performance is key to diagnosing problems and planning the right fix.
Where is the Transfer Case Located?

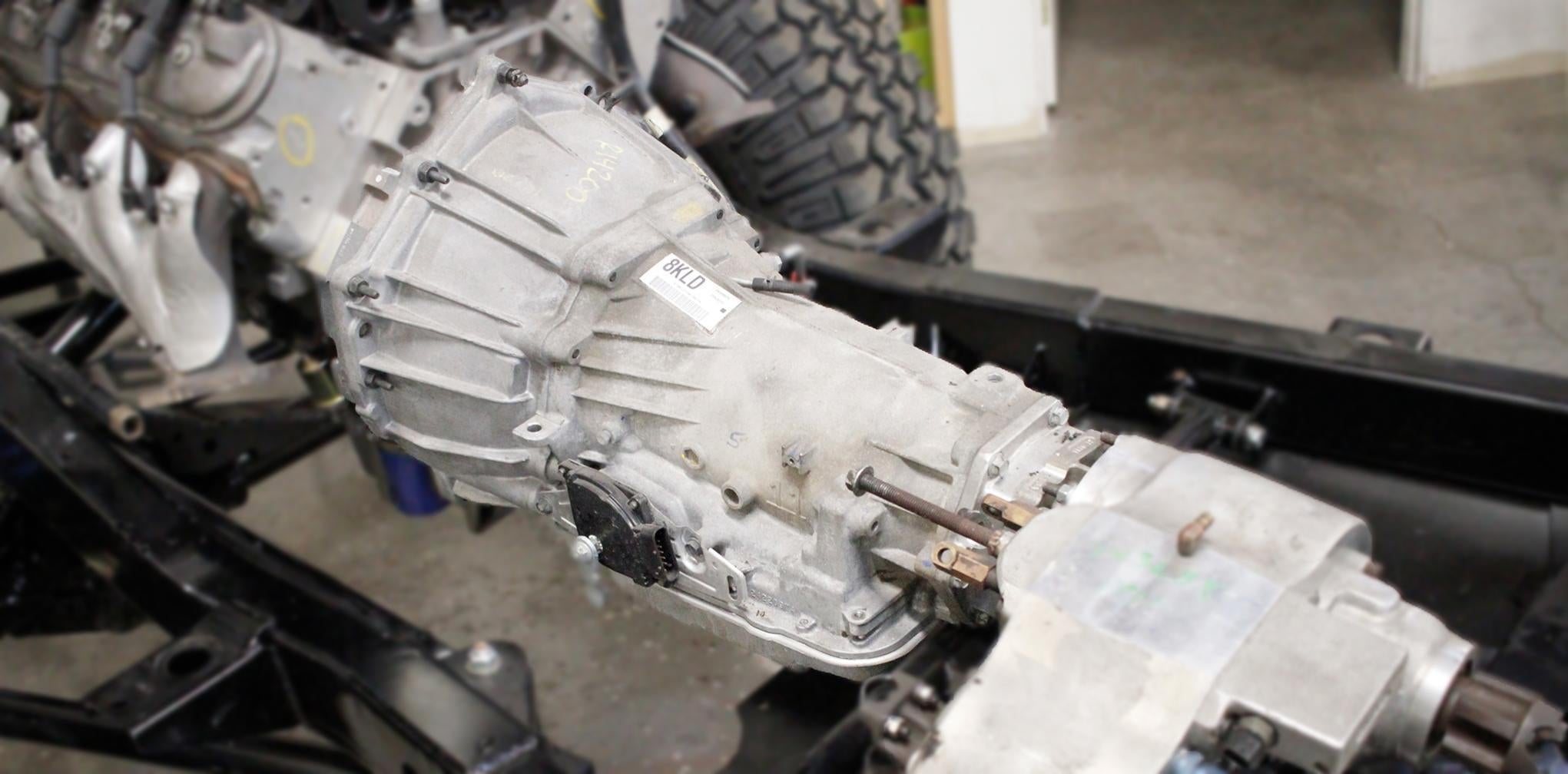

You’ll find the transfer case mounted right behind the transmission, connected to the driveshafts. It’s often protected by a skid plate on off-road trucks, so look for a sturdy casing near the middle of the undercarriage.
Bad Transfer Case Symptoms to Watch For
Here are the most common symptoms to watch for — and what they might mean for your next steps:
- Strange Noises: Grinding, clunking, or humming sounds when you’re in 4WD often point to worn gears or bearings inside the transfer case. If the damage is minor and isolated, a repair might do the trick. But if the internals are heavily worn or contaminated, you could be looking at a rebuild or replacement.
- Difficulty Shifting: Trouble engaging or disengaging 4WD can be caused by a failing shift mechanism or damage inside the case. A simple shift motor replacement or small repair could fix it, but persistent shifting issues often call for a rebuild.
- Fluid Leaks: Transfer cases rely on a steady supply of lubrication. A small leak at a seal or gasket might be an easy repair. But if leaks have led to internal damage, a rebuild or replacement might be necessary.
- Vibrations: Noticeable vibrations, especially under load, can signal worn components inside the transfer case. Depending on the extent of wear, a rebuild might restore function, but severe cases may need a full replacement.
Transfer Case Replacement Guide for Diesel Trucks
Whether your case is completely worn out, cracked, or you’re looking for an upgrade, a replacement can give you the confidence to tackle whatever the road or trail throws at you.
When to Consider a Replacement:
- Severe Internal Damage: If the gears or bearings are beyond saving, replacing the entire unit is often easier and more cost-effective than sourcing parts for a rebuild.
- Cracked Housing: A cracked or damaged transfer case housing can’t always be repaired, making replacement the safer bet.
- Performance Upgrades: If you’re looking for stronger internals or different gear ratios to match your build, a replacement unit may be the best path forward.
Steps for Replacement:
- Preparation: Make sure you have the right replacement transfer case for your truck’s make, model, and drivetrain.
- Drain the Fluid: Drain the old fluid from the case to avoid mess and contamination.
- Disconnect the Driveshafts: Remove both front and rear driveshafts from the transfer case.
- Unbolt and Remove: Disconnect the case from the transmission and remove any wiring or shift linkages.
- Install the New Case: Position the new transfer case, align the splines, and bolt it to the transmission. Reconnect driveshafts and wiring.
- Refill with Fluid: Use the manufacturer-recommended fluid to ensure proper lubrication.
Diesel Power Products carries a selection of quality options from trusted brands, like these Zumbrota Drivetrain transfer cases, so you can be sure your replacement is up to the task.
Transfer Case Rebuild Guide for Diesel Trucks
If your transfer case has issues but the core housing is still in good shape, rebuilding can be a smart way to get back on the road without the cost of a full replacement. Using a quality rebuild kit makes the process more straightforward by bundling the essential components you need in one package.
When to Consider a Rebuild:
- Moderate Wear: Worn gears, bearings, or seals that haven’t caused significant damage to the housing can often be rebuilt.
- Budget-Friendly: A rebuild kit can save money compared to a full replacement, especially if you’re comfortable doing the work yourself.
- Customization: A rebuild can give you a chance to upgrade internals for more strength or performance.
Steps for Rebuilding a Transfer Case:
- Preparation: Make sure you have the correct rebuild kit for your transfer case model.
- Drain the Fluid: Drain the old fluid completely.
- Disassembly: Remove the transfer case from the truck, then carefully disassemble it following manufacturer guidelines.
- Inspect and Replace: Use the rebuild kit to replace worn bearings, seals, gaskets, and other components.
- Reassembly: Reassemble the case, double-checking all tolerances and clearances.
- Install and Refill: Reinstall the transfer case in the truck, reconnect driveshafts, and refill with manufacturer-recommended fluid.
Diesel Power Products offers high-quality options from top brands, like this Proactice Gears transfer case rebuild kit, making it easy to restore your transfer case’s performance without the guesswork.
Transfer Case Repair Guide for Diesel Trucks
Not every transfer case issue calls for a full rebuild or replacement. Sometimes, a targeted repair can keep your truck rolling without draining your wallet.
Common transfer case repairs include:
- Fixing Transfer Case Fluid Leaks: Often caused by worn seals or gaskets, these leaks can be addressed by replacing the affected component.
- Shift Motor Replacement: If you’re having trouble engaging 4WD, a faulty shift motor or electronic actuator may be the culprit.
- Minor Internal Repairs: Small parts like snap rings or bushings can wear out over time and may be replaced without a full teardown.
Diesel Power Products stocks a wide range of products to support these repairs, including 4WD actuators, drain plugs, and other essential transfer case parts, so you can keep your truck on the road with confidence.
Transfer Case Replacement Cost and Budgeting Tips
Replacing a transfer case can be a big investment, but understanding the costs up front can help you plan your repair or upgrade more confidently.
Factors That Affect Cost:
- Type of Replacement: A brand-new unit typically costs more than a rebuild kit, but it can offer a more straightforward solution.
- Labor: If you’re tackling the job yourself, you’ll save on labor, but professional installation can add anywhere from a few hundred to over a thousand dollars depending on the shop.
- Truck Model: Some trucks have more complex transfer case setups that take longer to replace, which can affect shop rates.
- Parts Availability: Premium or upgraded transfer cases, especially those with heavy-duty internals or performance gearing, typically cost more than stock units.
Typical Cost Range:
- Brand-New Transfer Cases: Around $2,000, depending on the brand and truck model.
- Rebuild Kits: Generally priced around $200, providing a cost-effective way to extend the life of your existing unit if the housing is still in good shape. Keep in mind that rebuild kits usually require specialized tools and mechanical expertise, so factor that into your decision.
Everything You Need for Your Transfer Case Replacement, Rebuild, or Repair
Whether you’re dealing with a worn-out unit, a fluid leak, or planning an upgrade, knowing when to repair, rebuild, or go for a full transfer case replacement is key to keeping your diesel truck running strong.
Diesel Power Products stocks the parts and components you need to tackle these jobs with confidence — from complete transfer cases to rebuild kits, drain plugs, indexing rings, drop kits, pump upgrades, and 4WD actuators. Our team of diesel specialists is always ready to help you find the right parts for your truck, so you can get back on the road quickly and reliably.
Check out our full selection of transfer case replacement parts on our website or contact our diesel pros today!
